Description
Basic Info.
| Model NO. | MMY |
| Torque | >80N.M |
| Bore Diameter | 19mm |
| Speed | 4000r/M |
| Structure | Flexible |
| Material | Stainless Steel |
| Type | Universal Coupling |
| Inner Diameter | 24-55mm |
| Length | 140mm |
| Outer Diameter | 105mm |
| Transport Package | Wooden Box |
| Specification | Customize |
| Origin | China |
| HS Code | 848390009 |
| Production Capacity | 5000PCS/Week |

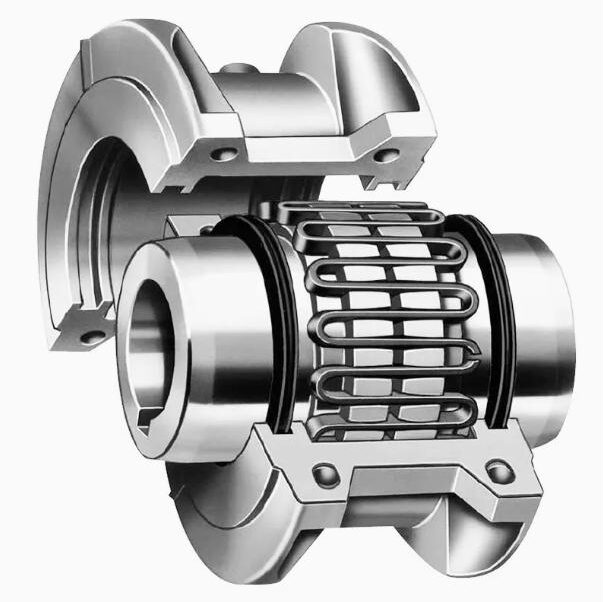

What is the JS Series Spline Shaft Snake Spring Grid Coupling?
The JS Series Spline Shaft Snake Spring Grid Coupling is a high-performance transmission component specifically designed for heavy industrial loads. Its core feature is the unique spline structure combined with a snake spring design, which enables the coupling to maintain excellent flexibility and stability during high-torque transmission. This design effectively mitigates the shocks and vibrations that occur during operation, thereby enhancing the overall reliability and lifespan of the transmission system.
As a typical spline coupling, the JS Series coupling is capable of withstanding extreme torque, making it ideal for harsh and demanding working environments. Whether operating for long periods or under heavy loads, the JS Series coupling ensures stable power transmission. Its flexible design compensates for small misalignments between shafts, reducing wear and tear on the system, and improving the overall efficiency of the machinery.
In practical applications, the JS Series Spline Shaft Coupling is commonly used in industries requiring high torque and load transfer. Its transmission performance makes it highly effective in heavy machinery applications such as metallurgy, mining, shipbuilding, and fans. Its unique design provides better adaptability and durability compared to traditional Splined Couplings, particularly in high-vibration or fluctuating load conditions, where it maintains a high level of operational stability.
Furthermore, the JS Series coupling is compatible with various industrial transmission systems, making it suitable for a wide range of equipment. Its use not only enhances transmission efficiency but also reduces maintenance costs by preventing system breakdowns. This makes it particularly well-suited for applications that require frequent operation and high reliability.
Product Features Overview
- Exceptional High-Torque Transmission Capacity
The JS Series Spline Shaft Snake Spring Grid Coupling is crafted from high-strength stainless steel and precision manufacturing processes, specifically designed to withstand and transmit high torque. In industrial machinery, torque is the core force that drives mechanical operation, and the JS Series coupling maintains remarkable stability under these high-load conditions. For instance, in the metallurgy industry, heavy equipment such as smelting furnaces requires long hours of operation under massive loads. The JS Series coupling ensures efficient power transmission, keeping production lines running smoothly and minimizing downtime or maintenance costs due to equipment failure. - Outstanding Power Transmission Efficiency
This coupling offers a transmission efficiency of up to 99.47%, meaning that it minimizes energy loss to the greatest extent, improving the overall operational efficiency of the equipment. Even under prolonged load conditions, the JS Series coupling maintains high-efficiency power transmission, helping businesses save on energy costs and reduce operational expenses. For example, in a large wind turbine system, the coupling helps maintain efficiency during high-speed operation, ensuring the wind turbine can operate for extended periods and produce maximum electricity output with minimal energy loss. - Short-Term Overload Capacity, Ensuring Safe Operation
The JS Series coupling is engineered to handle short-term overloads, capable of withstanding instantaneous loads that exceed the rated torque by more than twice, without failure or damage. This feature is especially valuable for industrial machinery subject to sudden load fluctuations. For example, mining machinery often faces unexpected load shocks during excavation, and the JS Series coupling can absorb these shocks, preventing equipment overload and ensuring continuous and safe operation. - Absorbing Transient Load Shocks, Extending Equipment Lifespan
Many industrial applications, such as in fan and compressor systems, encounter load shocks and vibrations that can damage transmission systems. The JS Series Spline Shaft Snake Spring Grid Coupling is designed to effectively absorb these transient load shocks, reducing wear and tear on mechanical components. For instance, in large fan systems, load fluctuations occur during startup and shutdown. The JS Series coupling can mitigate these fluctuations, preventing damage and extending the life of the system, ensuring that equipment remains in service longer with fewer maintenance issues. - Wide Application in High Load and High-Torque Environments
The reliability and durability of the JS Series Spline Shaft Coupling make it the ideal choice for high-load, high-torque equipment. Whether it’s the heavy load conditions in mining equipment or the continuous operation in cement production lines, the JS Series coupling ensures smooth power transmission. For example, after incorporating the JS Series coupling into a cement plant, equipment failure rates were significantly reduced, production efficiency increased by 15%, and maintenance costs were notably lowered. This demonstrates the coupling’s importance in high-load environments, making it an indispensable component in numerous industrial sectors.
Through these unique advantages, the JS Series Spline Shaft Coupling not only enhances the efficiency of industrial equipment but also greatly reduces the likelihood of failure and maintenance costs, providing long-term benefits and a higher return on investment for businesses.
Installation Considerations
Correct Coupling Size Selection
Before installing the coupling, it’s essential to select the correct size to ensure compatibility with your equipment. Factors such as shaft diameter, torque requirements, and rotational speed must be carefully considered. Matching the coupling specifications to your application’s needs will help prevent operational issues. If you’re unsure about the right size, it’s advisable to consult the supplier or seek technical support to avoid potential installation errors or performance complications.
Cleaning and Preparation
Proper cleaning and preparation of the coupling and shafts are crucial for successful installation. It’s important to remove any dirt, grease, or contaminants from both the coupling and the shafts. Contaminants left on the surfaces or spline grooves can interfere with the installation process, affecting the accuracy of the fit and the smooth operation of the coupling. Use a clean cloth and non-corrosive cleaning agents to ensure the parts are thoroughly cleaned without causing any damage.
Shaft Alignment and Fit
Aligning the shafts correctly is critical to ensuring the coupling functions as intended. Misalignment, whether axial, radial, or angular, can lead to premature wear or even failure of the coupling. To achieve proper alignment, use precise alignment tools that ensure the shafts are in the correct position. Any misalignment beyond the allowable tolerance could cause operational issues, so double-check the fit before proceeding with the installation.
Installation Sequence
Start the installation process by aligning the spline sleeve with the shaft’s spline grooves, ensuring that the connection between the spline and the shaft is smooth. Once aligned, securely attach the coupling to the shaft using the appropriate installation tools, making sure the connection is firm. Avoid using excessive force during installation, as this could damage either the coupling or the shaft surface.
Torque Transmission Check
After completing the installation, manually rotate the equipment to verify the smooth transmission of torque through the coupling. Listen for any unusual noises or signs of binding, which could indicate a problem with the installation. If any irregularities are detected, recheck the alignment and fit to ensure everything is properly positioned and the coupling is functioning correctly.
Maintenance and Care
Regular Inspections
Regular inspections of the coupling are crucial for maintaining optimal performance during operation. Focus on detecting any signs of wear, particularly on critical areas such as the snake spring and spline regions. Irregular wear or visible damage can negatively impact the coupling’s function and lead to equipment malfunction. To ensure the coupling remains in good working condition, it’s advised to conduct an inspection every six months.
Lubrication and Cleaning
Proper lubrication is key to ensuring the smooth functioning of the spline shaft coupling. Be sure to lubricate the coupling periodically with the appropriate oil or grease based on the manufacturer’s guidelines and the operational conditions. Using incompatible lubricants can shorten the coupling’s lifespan, so always follow the recommended lubricants. Additionally, cleanliness plays a significant role, especially in high-temperature or high-contamination environments. Ensure that the coupling remains free from debris, which can accumulate and hinder its performance.
Load and Operating Environment
The lifespan of the coupling is directly influenced by the load and operating environment. Avoid subjecting the coupling to excessive loads, and ensure it is used within the manufacturer’s recommended temperature limits. Operating in high temperatures, humidity, or corrosive environments can accelerate wear and lead to premature failure. It’s crucial to tailor the environment to suit the equipment’s operational needs to prolong the coupling’s life and maintain its functionality.
Bearing and Coupling Fit
Ensure that the coupling fits properly with the bearing to avoid any operational issues. A poor fit between the spline shafts and the coupling can lead to increased friction, causing unnecessary wear and reducing the overall performance of the coupling. Regularly check the fit to ensure smooth operation and minimize the risk of failure.
Replacement and Repair
If the coupling shows significant wear or damage, it should be replaced promptly. Continuing to use a damaged coupling could result in more severe damage to the equipment. Always use genuine replacement parts to ensure proper compatibility and maintain the reliability and performance of the machinery.
By following these installation and maintenance guidelines, you can greatly extend the lifespan of the Js Series Spline Shaft Snake Spring Grid Coupling and ensure the stable operation of your equipment.
Why Choose Us?
When it comes to high-quality and reliable components for your machinery, the Js Series Spline Shaft Snake Spring Grid Coupling stands out as a top choice. As a trusted supplier of Spline Couplings, we offer durable and efficient solutions tailored to meet the needs of various industrial applications. Here’s why you should choose us for your coupling needs:
Superior Quality and Durability
Our Js Series Spline Shaft Snake Spring Grid Coupling is crafted using precision engineering and high-quality materials. We ensure that each Spline Shaft Coupling meets rigorous performance standards to provide long-lasting durability. With excellent resistance to wear and high torsional stiffness, our couplings are designed to perform reliably under demanding conditions.
Wide Range of Applications
Our Spline Shafts and Couplings are ideal for a variety of applications, including agricultural machinery, industrial equipment, and more. Whether you need a Splined Coupling for high-torque transmission or need a specific design to meet your equipment’s unique requirements, our product range offers the versatility you need.
Competitive Pricing
We understand the importance of balancing quality and cost. Our Spline Shaft Snake Spring Grid Couplings are competitively priced to provide excellent value while maintaining top-notch quality. By leveraging efficient manufacturing processes, we ensure that you get the best product at a reasonable cost.
Fast and Reliable Delivery
We know how crucial timely delivery is in industrial operations. That’s why we have a streamlined logistics network to ensure fast and reliable delivery of our Spline Couplings. We minimize downtime by getting the parts you need to you as quickly as possible.
Expert Technical Support
Our experienced team is here to assist you with any technical questions or support you may need. From selecting the right Spline Coupling to troubleshooting installation or performance issues, we are dedicated to providing personalized, expert advice to ensure your success.
Custom Solutions Available
We understand that every application is different, and that’s why we offer customized solutions. Whether you need a unique size, design, or material for your Spline Shaft Coupling, we work closely with you to create a tailored solution that meets your exact specifications.
Choose us for all your Spline Coupling needs, and enjoy reliable products, competitive prices, and unmatched customer service. We’re here to help you keep your operations running smoothly.
